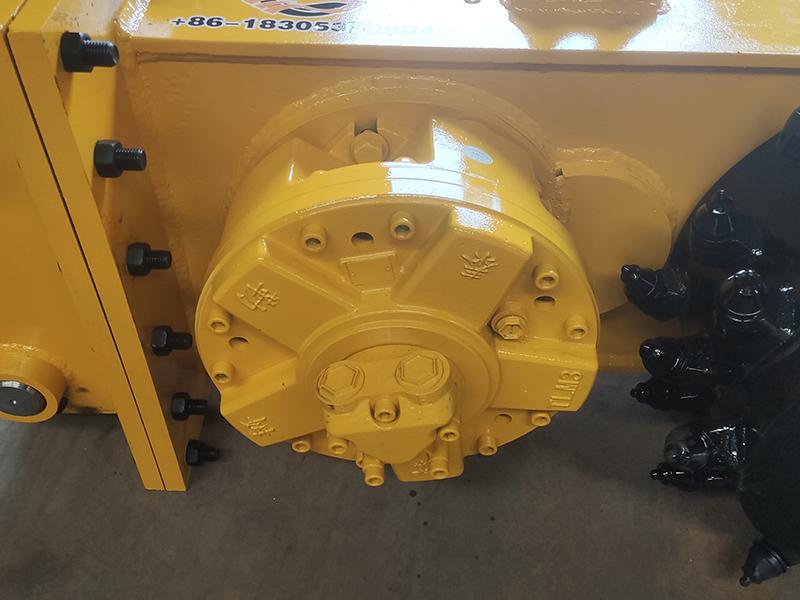

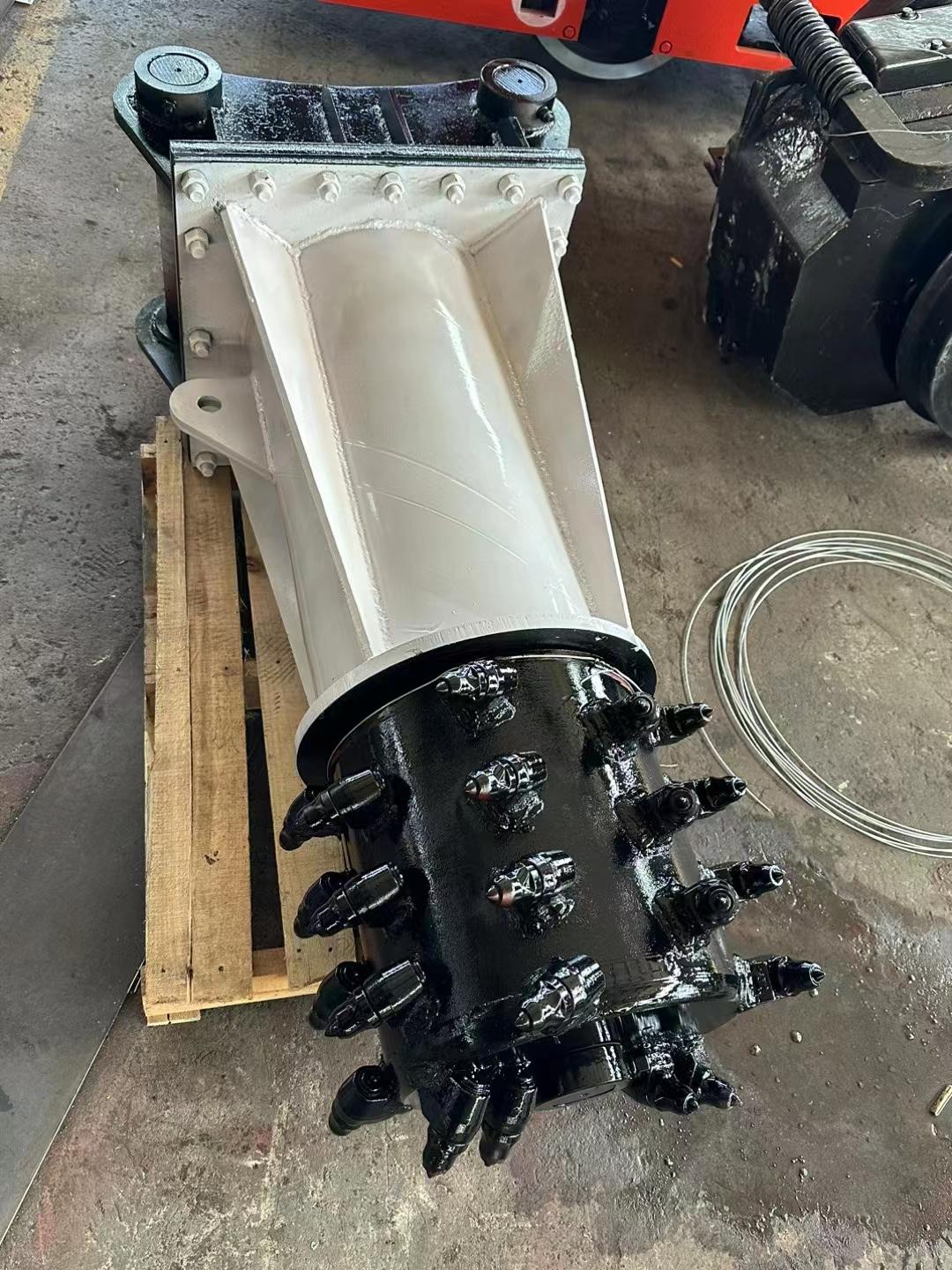

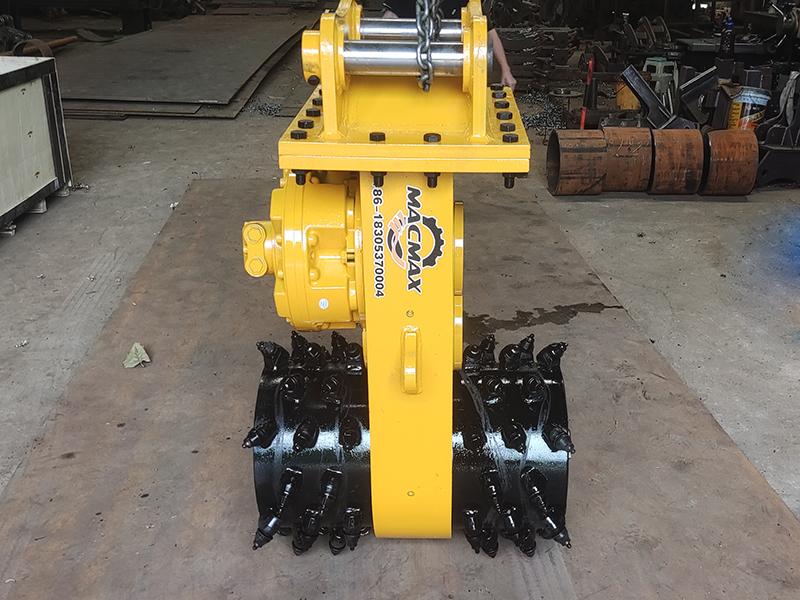

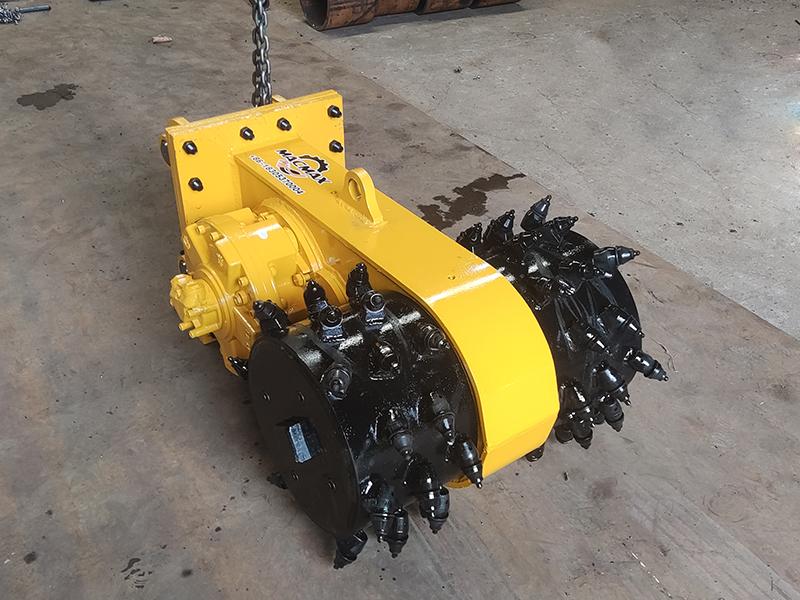

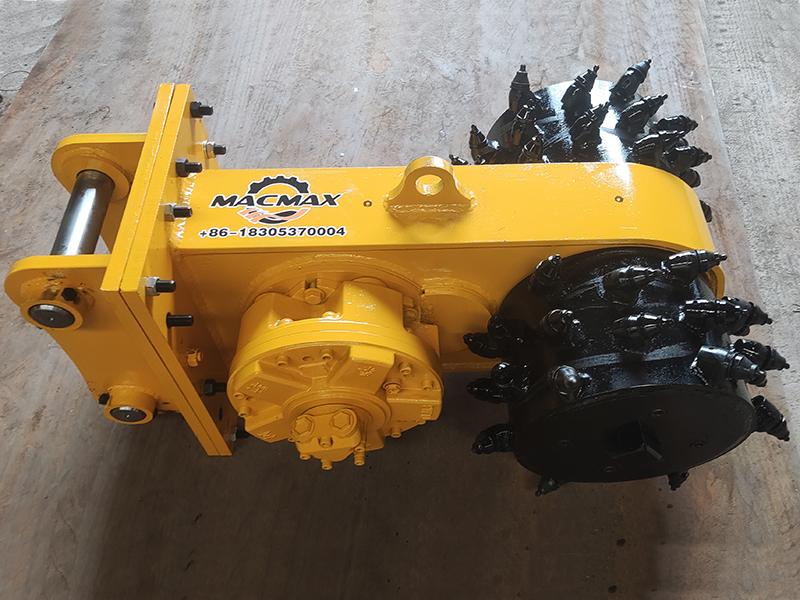

Excavator drum cutter, milling machines, are divided into horizontal and vertical milling machine. It is widely used in open-pit coal mine, tunnel excavation and outline correction, channel groove milling and digging, asphalt concrete pavement milling, rock digging, toots milling, milling of permafrost, iron and steel industry, forestry and other construction field.
Product parameters
| Model number | max20 | max60 | max90 | max90z |
| Length, width and height | 235*370*390mm | 359*650*760mm | 500*960*1650mm | 600*600*1250mm |
| power | 15KW | 29KW | 90KW | 45KW |
| Maximum speed | 50-90R/min | 50-80R/min | 40-75R/min | 40-80R/min |
| Recommended flow | 24-32L/min | 35-55L/min | 110-160L/min | 80-150L/min |
| Maximum rolling diameter | 235mm | 359mm | 465mm | φ465mm |
| Milling width | 370mm | 650mm | 970mm | φ465mm |
| Overall quality | 90kg | 330kg | 480kg | 900kg |
